Grundfos Hydro Solo-E CRIE 5-5 booster set – 9.5m³/hr @ 4.5 bar (240V)
Designed for domestic and light commercial pressure boosting, the Grundfos Hydro Solo-E CRIE 5-5 booster set provides compact single pump variable speed performance.
Product Description
Grundfos Hydro Solo-E CRIE 5-5 booster set – 9.5m³/hr @ 4.5 bar (240V)

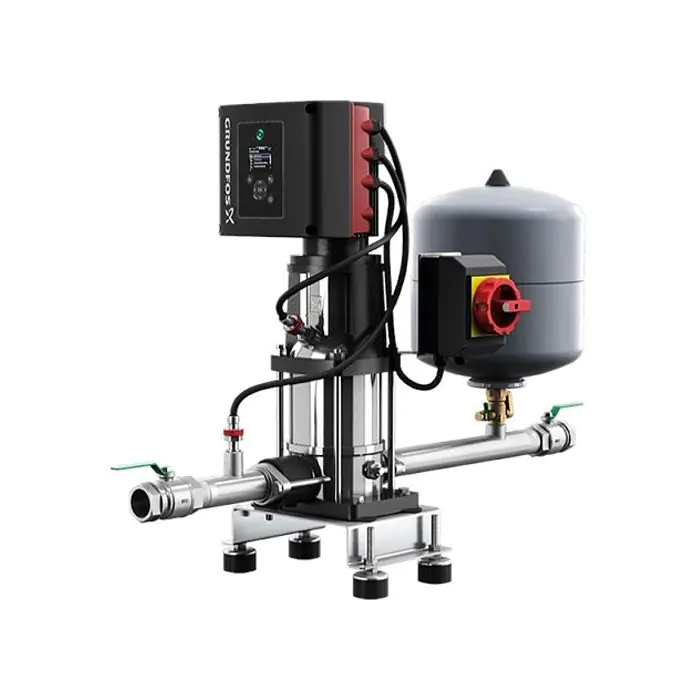

The Grundfos Hydro Solo-E CRIE 5-5 is a fully integrated single pump variable speed booster set designed to provide reliable cold water pressure boosting for domestic, residential and light commercial systems where stable outlet pressure is essential.
The system is supplied factory configured and tested for constant pressure operation, allowing straightforward installation and dependable performance from day one. Delivering up to 9.5m³/hr flow and pressures up to 4.5 bar, the Hydro Solo-E is suitable for properties and systems with fluctuating demand or insufficient incoming mains pressure.
At the centre of the system is a Grundfos CRE variable speed stainless steel multistage pump, fitted with a high-efficiency MGE motor featuring an integrated frequency converter and PI controller. The intelligent variable speed operation automatically adjusts pump performance to maintain constant pressure while improving energy efficiency and reducing system wear.
The booster set is supplied complete with:
- Isolating valve
- Non-return valve
- Inlet and discharge pipework
- Pressure transmitters
- Pressure gauge
- Diaphragm vessel
- Base frame with vibration dampers
- Main power switch
The integrated control system includes advanced protection and monitoring features such as dry-run protection, anti-cavitation protection, flow estimation and configurable alarm outputs.
A graphical display and control panel allows easy monitoring and adjustment of operating parameters, while the integrated Grundfos Eye status indicator provides visual indication of operating conditions and alarms.
Communication with the system is also possible using the optional Grundfos GO Remote, allowing access to live operating data and advanced settings.
The Hydro Solo-E can be connected to any Water Byelaw approved cold water storage tank with a suitable AB air gap and is designed to supply boosted cold water to pressurised hot and cold water systems at constant pressure.
Key features
- Delivers up to 9.5m³/hr flow
- Adjustable pressure up to 4.5 bar
- Variable speed constant pressure operation
- Stainless steel multistage CRE pump construction
- Integrated frequency converter and PI controller
- Quiet and energy-efficient operation
- Factory configured and tested before dispatch
- Integrated dry-run and anti-cavitation protection
- Grundfos Eye operating status indicator
- Graphical control display for easy monitoring
- Compatible with Grundfos GO Remote
- Integrated pressure vessel and vibration dampers
- Advanced digital and analogue input/output capability
- Suitable for connection to AB air gap water storage tanks
Ideal for
- Large domestic homes
- Multi-bathroom properties
- Residential developments
- Light commercial buildings
- Pressurised hot and cold water systems
- Applications requiring constant pressure boosting
Optional equipment available
NT Cloke Pumps & Water can supply supporting equipment and accessories for complete booster installations, including:
- WRAS-approved cold water storage tanks
- AB air gap tanks
- Anti-vibration mounts
- Isolation valves and fittings
- Pipework and accessories
- Frost-protected pump enclosures
- Grundfos GO Remote accessories
- Replacement parts and servicing support
Commissioning and service support
NT Cloke Pumps & Water provides commissioning, servicing and ongoing maintenance support to ensure your booster system operates reliably and efficiently.
Our engineers can assist with installation guidance, setup and long-term support for domestic and commercial booster applications.
Product specification
| Manufacturer | Grundfos |
|---|---|
| Manufacturers Warranty | 2 Years |
| GTIN | 5713829029958 |
| Weight | 52.0 Kg |

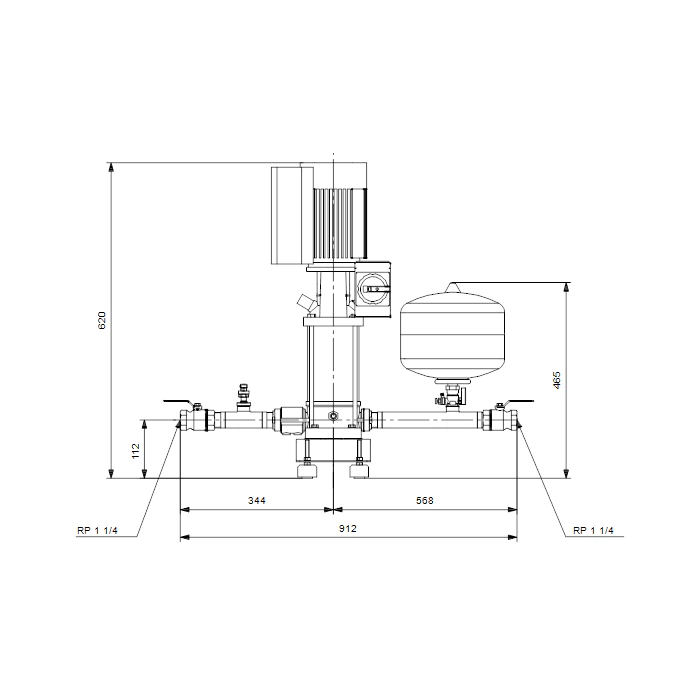

| Dimensions | 912mm L x 403mm W x 620mm H |
| Connection Type | 1 1/4 Inch BSP Female |
| Inlet Dimension | 11/4″ bspf |
| Discharge Dimension | 11/4″ bspf |
| Motor Size (kW/W) | 1.1 kW |
| Full Load Current (FLC) | 5.6 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 360-4000 rpm |
| Max Flow | 9.5 m3/hr |
| Max Head | 52 metres |
| Max Temperature | 60 degC |
| Material | Stainless Steel |
| Seal Type | HQQE |
| specification | Details |
|---|---|
| Manufacturer | |
| Weight | |
| Dimensions | |
| Full load current | |
| Voltage | |
| Max Flow | |
| Max Head | |
| Connection size | |
| Motor size | |
| RPM | |
| Material | Stainless Steel |
