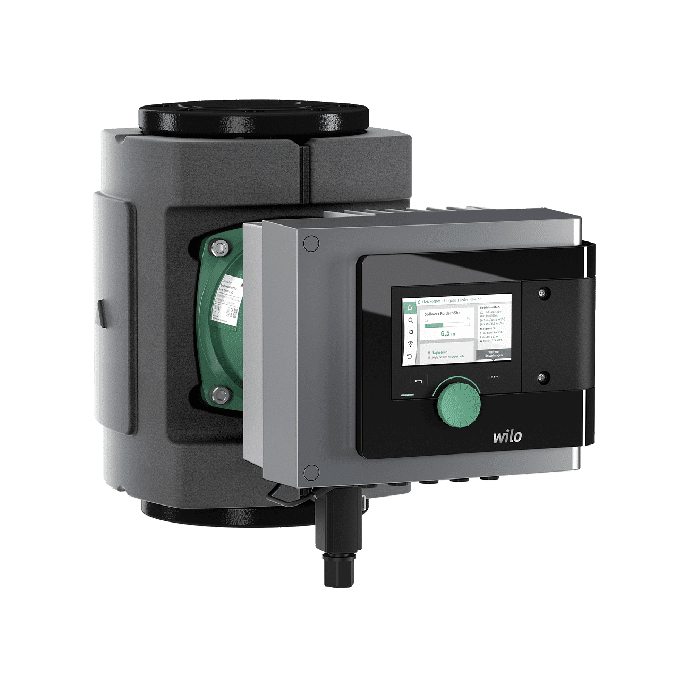

Wilo Stratos Maxo 100/0,5-12 PN6 Glandless Circulator Pump – 230v – Single Phase – 1117 Ltr/min

The Wilo Stratos Maxo 100/0,5-12 PN6 Glandless Circulator Pump – 230v – Single Phase – 1117 Ltr/min is engineered to provide highly efficient water circulation for commercial heating, chilled water, air conditioning, and HVAC systems. Its intelligent EC motor continuously monitors system demand and automatically adjusts pump performance to deliver optimum hydraulic efficiency. As a result, electricity consumption is significantly reduced while maintaining reliable circulation throughout the system. Furthermore, the advanced electronic controller helps lower operating costs and improves overall building efficiency.

Designed for hospitals, hotels, schools, office buildings, industrial facilities, district heating systems, and public buildings, this premium glandless circulator combines intelligent technology with exceptional long-term reliability. Additionally, the robust flanged construction enables fast installation in both new commercial systems and replacement projects. The intuitive operating interface also simplifies commissioning and everyday operation.

Wilo Stratos Maxo 100/0,5-12 PN6 Intelligent EC Motor Technology

The integrated high-efficiency EC motor automatically adjusts pump speed according to changing operating conditions. Furthermore, the intelligent electronic controller supports multiple operating modes including constant differential pressure (Δp-c), variable differential pressure (Δp-v), Dynamic Adapt Plus, constant flow, constant temperature, differential temperature control, Multi-Flow Adaptation, user-defined PID control, and constant speed operation. These intelligent functions continuously optimise hydraulic performance while minimising unnecessary energy consumption.

Moreover, Bluetooth connectivity allows engineers to commission and monitor the pump using the Wilo-Assistant App. Integration with Building Management Systems (BMS) is also supported through optional communication modules. Consequently, building owners benefit from lower running costs, improved energy efficiency, and simplified maintenance.

Wilo Stratos Maxo 100/0,5-12 PN6 Reliable Commercial Performance

This glandless circulator delivers a maximum flow rate of 1117 Ltr/min, a maximum head of 14 metres, and operates at a maximum working pressure of PN6 (6 Bar). In addition, the hydraulically optimised pump design ensures dependable circulation while reducing pressure losses across commercial heating and cooling systems.

The maintenance-free glandless construction eliminates mechanical shaft seals, reducing servicing requirements while increasing long-term reliability. Likewise, the durable grey cast iron housing, high-quality hydraulic components, and blocking-current-proof EC motor ensure dependable operation during continuous commercial use. Therefore, maintenance costs remain low while system uptime is maximised.

Wilo Stratos Maxo 100/0,5-12 PN6 Easy Installation & Smart Control

Installation is straightforward thanks to the integrated Wilo-Connector, large 4.3-inch colour graphic display, and intuitive Green Button operating concept. Furthermore, operating parameters can be configured quickly, reducing installation time and simplifying future servicing.

Integrated diagnostics, energy monitoring, Bluetooth communication, operating data logging, and fault signalling provide valuable information for maintenance engineers. As a result, servicing becomes faster while downtime remains minimal. Optional communication modules support BACnet, Modbus, CANopen, LON, PLR, and Wilo Smart Gateway connectivity, making the pump ideal for smart commercial buildings.

Typical Applications

The Wilo Stratos Maxo 100/0,5-12 PN6 Glandless Circulator Pump is suitable for:

• Commercial heating systems
• Chilled water systems
• Air conditioning systems
• HVAC installations
• District heating systems
• Office buildings
• Hotels
• Hospitals
• Schools
• Industrial facilities
• Public buildings

Finally, whether installed in a new commercial HVAC project or replacing an existing circulator pump, the Wilo Stratos Maxo 100/0,5-12 PN6 Glandless Circulator Pump delivers intelligent control, exceptional energy efficiency, and dependable long-term performance.

Browse our Wilo Circulator Pumps collection to discover additional high-efficiency commercial circulation pumps.

Visit the Official Wilo Website for complete installation instructions, technical documentation, and performance information.

---

Key Features

• High-efficiency EC motor
• 230v single-phase power supply
• Maximum flow rate 1117 Ltr/min
• Maximum head 14 metres
• PN6 pressure rating
• Intelligent electronic control
• Dynamic Adapt Plus technology
• Constant and variable differential pressure control
• Constant flow and temperature control
• Multi-Flow Adaptation
• 4.3-inch colour graphic display
• Wilo-Connector electrical connection
• Maintenance-free glandless construction
• Bluetooth connectivity
• Building Management System (BMS) compatibility
• Integrated diagnostics and fault signalling

---

Benefits

• Reduces electricity consumption
• Automatically adjusts to changing system demand
• Maintains reliable water circulation
• Improves heating and cooling efficiency
• Minimises maintenance requirements
• Simplifies installation and commissioning
• Supports smart building integration
• Reduces operating costs
• Delivers dependable long-term commercial performance
