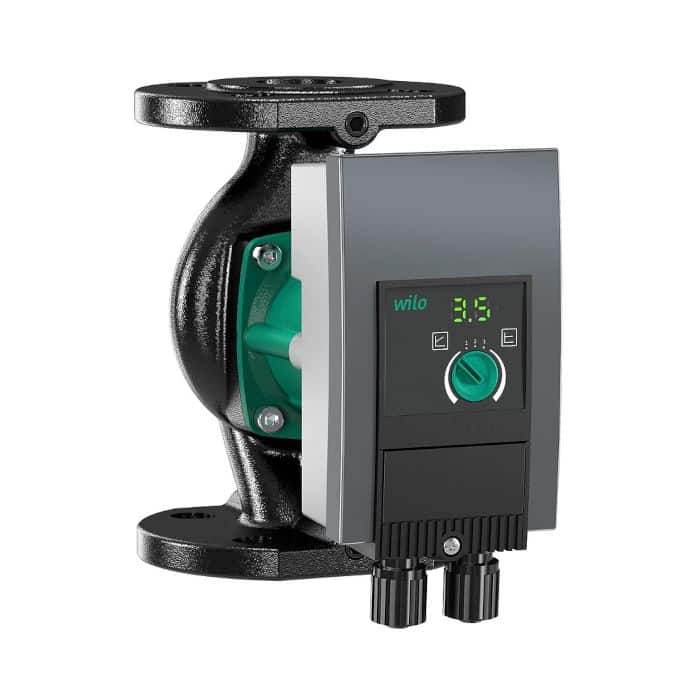

Wilo Yonos Maxo 65/0,5-16 PN6/10 Circulator Pump – 230v – Single Phase – 817 Ltr/min

The Wilo Yonos Maxo 65/0,5-16 PN6/10 Circulator Pump – 230v – Single Phase – 817 Ltr/min is engineered to deliver reliable water circulation for commercial heating, chilled water, ventilation, and air conditioning systems. Its electronically controlled ECM motor continuously adjusts pump performance according to system demand. As a result, energy consumption is reduced while consistent hydraulic performance is maintained throughout the installation. This pump is ideal for commercial buildings, hospitals, hotels, schools, industrial facilities, and district heating systems requiring dependable circulation.

Intelligent ECM Motor Technology

The integrated ECM motor automatically regulates pump speed to suit changing operating conditions. Furthermore, the pump offers constant differential pressure (Δp-c), variable differential pressure (Δp-v), and three fixed-speed operating modes, allowing installers to optimise performance for different HVAC applications. These intelligent operating modes improve efficiency while reducing electricity consumption.

Moreover, the pump achieves an excellent Energy Efficiency Index (EEI ≤ 0.20), helping reduce running costs over its lifetime. The intelligent motor automatically adapts to system demand, ensuring efficient operation without unnecessary energy usage.

Reliable Commercial Performance

Designed for demanding commercial environments, this circulator delivers a maximum flow rate of 817 Ltr/min and a maximum pumping head of 16 metres. In addition, the robust hydraulic design ensures stable circulation even during periods of varying demand.

The heavy-duty grey cast iron housing, stainless steel shaft, carbon-graphite bearings, and high-quality impeller provide excellent durability and long service life. Consequently, the pump offers dependable operation while reducing maintenance requirements in busy plant rooms.

Easy Installation and Simple Control

Installation is quick thanks to the integrated Wilo Plug electrical connection and clear LED display. Likewise, engineers can easily configure operating modes and pressure settings using the intuitive control interface. The pump also includes a collective fault signal (SSM), allowing maintenance teams to identify faults quickly.

With a DN65 PN6/10 flange connection and 340 mm installation length, the pump is suitable for both replacement projects and new commercial HVAC installations. Furthermore, its compact design simplifies servicing while reducing installation time.

Ideal Applications

This circulator pump is suitable for commercial heating systems, chilled water installations, air conditioning systems, district heating networks, office buildings, hospitals, hotels, schools, apartment developments, and industrial facilities. Therefore, it provides an excellent solution wherever reliable and energy-efficient water circulation is required.

Whether installed in a new HVAC project or replacing an existing circulator pump, the Wilo Yonos Maxo 65/0,5-16 PN6/10 Circulator Pump – 230v – Single Phase – 817 Ltr/min delivers intelligent electronic control, reliable circulation, and outstanding long-term efficiency.

Browse our Wilo Circulator Pumps collection to discover additional high-efficiency heating and cooling pumps.

For detailed installation instructions, technical specifications, and performance curves, visit the Official Wilo Website.

Key Features

• High-efficiency ECM motor
• 230v single phase power supply
• Maximum flow rate 817 Ltr/min
• Maximum head 16 metres
• Constant differential pressure control (Δp-c)
• Variable differential pressure control (Δp-v)
• Three fixed-speed operating modes
• LED operating display
• Wilo Plug electrical connection
• DN65 PN6/10 flange connection
• 340 mm installation length
• Energy Efficiency Index (EEI ≤ 0.20)
• Collective fault signal (SSM)
• Maintenance-free glandless circulator
• Blocking-current proof motor

Benefits

• Reduces energy consumption
• Automatically adjusts to changing system demand
• Improves heating and cooling efficiency
• Delivers reliable commercial circulation
• Low maintenance operation
• Simplifies installation and commissioning
• Provides dependable long-term performance
• Suitable for commercial HVAC systems
