Wilo VeroLine IP-E32/135-1,5/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar
Wilo VeroLine IP-E32/135-1,5/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar. Wilo VeroLine-IP-E in-line centrifugal pump with 1.5 kW IE4 motor and 3~380 V three-phase supply.
Product Description

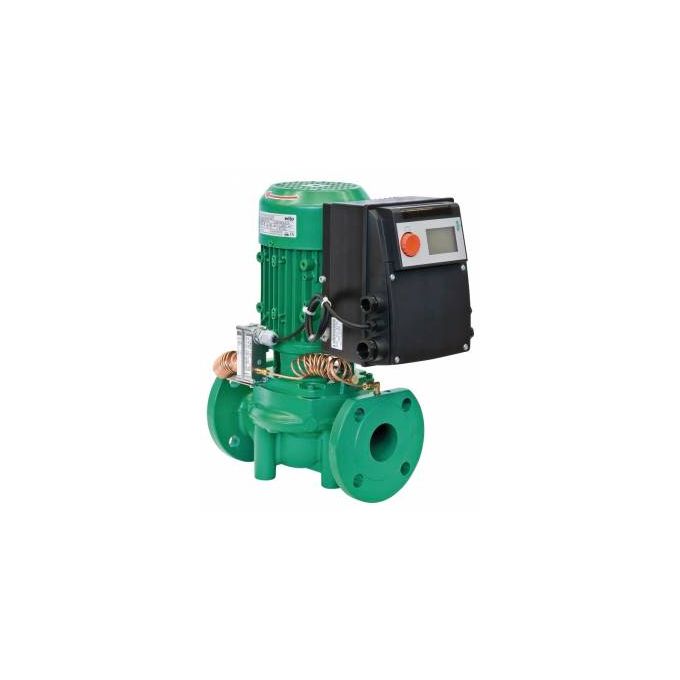

Wilo VeroLine IP-E32/135-1,5/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar
The Wilo VeroLine IP-E32/135-1,5/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar is a Wilo VeroLine-IP-E in-line centrifugal pump for suitable heating, air-conditioning and cooling circulation systems. It combines a single-stage glanded pump design with an integrated frequency converter for electronic control.
This model has a rated motor output of 1.5 kW and uses a three-phase electrical supply. Wilo technical data specifies 3~380 V operation within the stated supply tolerance and a maximum operating pressure of 10 bar.
Electronic Pump Control
The VeroLine-IP-E uses an integrated frequency converter for electronic control of constant or variable differential pressure. This IP-E 32/135-1,5/2 version is with the differential-pressure sensor arrangement.
Typical Applications
- Heating water circulation
- Air-conditioning systems
- Cooling and cold-water circulation
- Hydronic circulation systems
- Commercial building-services applications
Key Features
- Single-stage glanded low-pressure centrifugal pump
- In-line design for pipe installation
- Integrated frequency converter for electronic control
- 3~380 V three-phase supply
- IE4 motor efficiency class
- Maximum operating pressure of 10 bar
- Fluid temperature range from -20 °C to 120 °C
- IP55 motor protection and insulation class F
Benefits
- Electronic control supports efficient circulation management
- In-line construction can simplify installation planning
- Suitable for heating, cooling and air-conditioning duties
- IE4 motor efficiency supports energy-conscious system design
- Wilo construction provides a clearly specified commercial pump solution
Technical Specifications
| Brand | Wilo |
|---|---|
| Series | VeroLine-IP-E |
| Model | IP-E 32/135-1,5/2 |
| Article number | 2158814 |
| Rated motor power P2 | 1.5 kW |
| Motor efficiency class | IE4 |
| Mains connection | 3~380 V, 50/60 Hz |
| Maximum operating pressure | 10 bar |
| Fluid temperature | -20 °C to 120 °C |
| Pipe connection | DN 32 |
| Port-to-port length | 260 mm |
| Protection class | IP55 |
| Insulation class | F |
| Motor protection | PTC integrated |
Why Choose This Wilo VeroLine-IP-E Pump?
This VeroLine-IP-E model offers electronic pump control in a compact in-line centrifugal pump format. Check the pump curve, electrical supply, connection dimensions and system duty before ordering and installation.
Product specification
| Manufacturer | Wilo |
|---|---|
| Warranty | 1 year warranty |
| Bars | 10 bar |
| Electrical supply | 380V |
| AC Power | Three Phase |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Centrifugal Pump |
| Inlet Connection | DN 32 |
| Outlet Connection | DN 32 |
| Next Day Delivery | No |
| Port To Port | 260mm |
| Manufacturers Part Number | 2158814 |
| specification | Details |
|---|---|
| Manufacturer | |
| Weight | |
| Dimensions | |
| Full load current | |
| Voltage | |
| Max Flow | |
| Max Head | |
| Connection size | |
| Motor size | |
| RPM | |
| Material |
