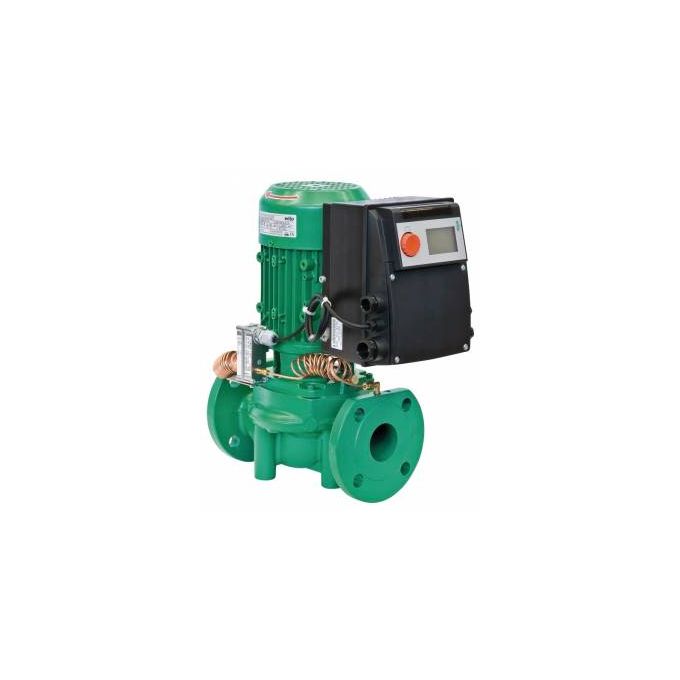

Wilo VeroLine IP-E65/120-3/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar
Wilo VeroLine IP-E65/120-3/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar. Wilo VeroLine-IP-E in-line centrifugal pump with 3 kW IE4 motor and 3~380 V three-phase supply.
Product Description
Wilo VeroLine IP-E65/120-3/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar
The Wilo VeroLine IP-E65/120-3/2-IE4 Centrifugal Pump – 380v – Three Phase – 10 bar is a Wilo VeroLine-IP-E in-line centrifugal pump for suitable heating, air-conditioning and cooling circulation systems. It combines a single-stage glanded design with integrated electronic control.
This model has a rated motor output of 3 kW and a three-phase electrical supply. The range is designed for controlled circulation duties with a maximum operating pressure of 10 bar.
Electronic Pump Control
The VeroLine-IP-E uses integrated electronic control for circulation management. This model is supplied in the corresponding standard or R1 configuration.
Typical Applications
- Heating water circulation
- Air-conditioning systems
- Cooling and cold-water circulation
- Hydronic circulation systems
- Commercial building-services applications
Key Features
- Single-stage glanded centrifugal pump
- Compact in-line design
- Integrated electronic pump control
- IE4 motor efficiency class
- 3~380 V three-phase supply
- Maximum operating pressure of 10 bar
- IP55 motor protection
- PTC thermistor motor protection
Benefits
- Electronic control supports circulation management
- In-line construction can simplify installation planning
- Suitable for heating, cooling and air-conditioning duties
- IE4 motor efficiency supports energy-conscious design
- Wilo construction provides a specified commercial pump solution
Technical Specifications
| Brand | Wilo |
|---|---|
| Series | VeroLine-IP-E |
| Model | IP-E 65/120-3/2 |
| Article number | 2158826 |
| Rated motor power P2 | 3 kW |
| Motor efficiency class | IE4 |
| Mains connection | 3~380 V, 50/60 Hz |
| Maximum operating pressure | 10 bar |
| Pipe connection | DN 65 |
| Port-to-port length | 340 mm |
| Protection class | IP55 |
| Motor protection | PTC thermistor sensor with trip electronics |
Why Choose This Wilo VeroLine-IP-E Pump?
Check the pump curve, electrical supply, connection dimensions and system duty before ordering and installation.
Product specification
| Manufacturer | Wilo |
|---|---|
| Warranty | 1 year warranty |
| Bars | 10 bar |
| Electrical supply | 380V |
| AC Power | Three Phase |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Centrifugal Pump |
| Inlet Connection | DN 65 |
| Outlet Connection | DN 65 |
| Next Day Delivery | No |
| Port To Port | 340mm |
| Manufacturers Part Number | 2158826 |
| specification | Details |
|---|---|
| Manufacturer | |
| Weight | |
| Dimensions | |
| Full load current | |
| Voltage | |
| Max Flow | |
| Max Head | |
| Connection size | |
| Motor size | |
| RPM | |
| Material |
