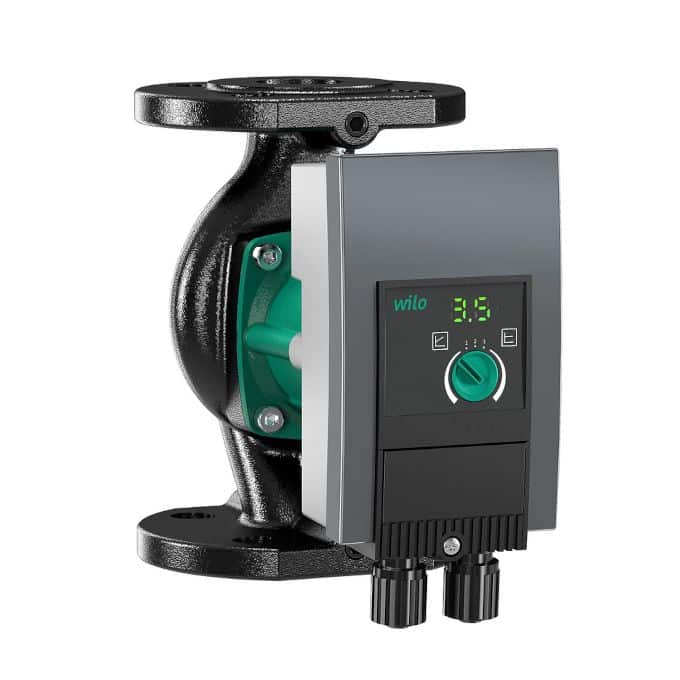

Wilo Yonos Maxo 80/0,5-12 PN10 Circulator Pump – 230v – Single Phase – 934 Ltr/min

The Wilo Yonos Maxo 80/0,5-12 PN10 Circulator Pump – 230v – Single Phase – 934 Ltr/min is engineered to provide dependable water circulation for commercial heating, chilled water, and air conditioning systems. Its electronically controlled ECM motor automatically adjusts pump performance to match changing system demand. As a result, the pump reduces energy consumption while maintaining consistent hydraulic performance throughout the installation. It is an excellent solution for hospitals, hotels, schools, office buildings, industrial facilities, district heating networks, and other commercial HVAC applications.

High-Efficiency ECM Motor Technology

The advanced ECM motor continuously regulates pump speed to deliver the correct flow and pressure required by the system. Furthermore, selectable operating modes include constant differential pressure (Δp-c), variable differential pressure (Δp-v), and three fixed-speed settings, allowing installers to optimise performance for different heating and cooling applications.

Moreover, the intelligent electronic controller achieves an Energy Efficiency Index (EEI ≤ 0.20), helping reduce electricity costs while maintaining reliable operation. The motor responds automatically to changing system conditions, ensuring smooth circulation without unnecessary energy use.

Reliable Commercial Performance

Designed for demanding commercial environments, this circulator delivers a maximum flow rate of 934 Ltr/min together with a maximum pumping head of 13.6 metres. In addition, its optimised hydraulic design provides stable circulation for sealed heating systems, chilled water networks, and air conditioning installations.

The robust grey cast iron housing, stainless steel shaft, carbon-graphite bearings, and maintenance-free glandless construction ensure long service life. Consequently, the pump provides dependable performance while reducing servicing requirements and overall operating costs.

Easy Installation and Intelligent Operation

Installation is simple thanks to the integrated Wilo Plug electrical connection and clear LED operating display. Likewise, engineers can quickly configure operating modes and pressure settings during commissioning. The integrated fault signalling function also assists maintenance teams by providing fast diagnostic information.

The DN80 PN10 flange connection and compact commercial design make this circulator suitable for both replacement projects and new HVAC installations. Furthermore, the user-friendly controls help minimise installation time while simplifying ongoing maintenance.

Ideal Applications

This circulator pump is suitable for commercial heating systems, chilled water installations, air conditioning systems, district heating networks, hospitals, hotels, schools, office buildings, apartment developments, and industrial facilities. Therefore, it offers an energy-efficient and dependable solution wherever high-performance water circulation is required.

Whether installed as part of a new HVAC project or replacing an existing circulator, the Wilo Yonos Maxo 80/0,5-12 PN10 Circulator Pump – 230v – Single Phase – 934 Ltr/min delivers intelligent electronic control, reliable circulation, and outstanding long-term efficiency.

Browse our Wilo Circulator Pumps collection to explore additional high-efficiency commercial circulation pumps.

For complete installation instructions, technical specifications, and performance data, visit the Official Wilo Website.

Key Features

• High-efficiency ECM motor
• 230v single phase power supply
• Maximum flow rate 934 Ltr/min
• Maximum head 13.6 metres
• Constant differential pressure control (Δp-c)
• Variable differential pressure control (Δp-v)
• Three fixed-speed operating modes
• LED operating display
• Wilo Plug electrical connection
• DN80 PN10 flange connection
• Energy Efficiency Index (EEI ≤ 0.20)
• Maintenance-free glandless circulator
• Blocking-current proof motor
• Collective fault signalling (SSM)

Benefits

• Reduces energy consumption
• Automatically adjusts to changing system demand
• Delivers reliable commercial circulation
• Improves heating and cooling efficiency
• Minimises maintenance requirements
• Simplifies installation and commissioning
• Provides dependable long-term performance
• Suitable for demanding commercial HVAC systems
