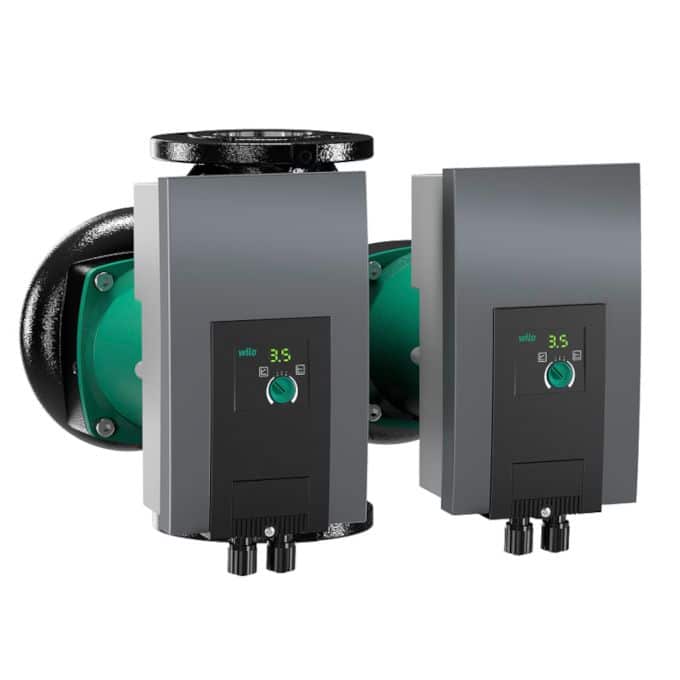

Wilo Yonos Maxo 50/0.5-8 Circulator Pump – 230v – Single Phase – 240mm
Wilo Yonos Maxo 50/0.5-8 circulator pump with 230 V single-phase supply and 8 m maximum head.
Product Description
Wilo Yonos Maxo 50/0.5-8 Circulator Pump – 230v – Single Phase – 240mm
The Wilo Yonos Maxo 50/0.5-8 Circulator Pump – 230v – Single Phase – 240mm is a Wilo circulator designed for compatible heating and HVAC water circulation systems. It combines electronic pump control with efficient motor technology to support controlled circulation according to system demand.
This model uses a 230 V single-phase electrical supply and provides a maximum head of 8 m. The supplied product information identifies it for compatible building-services applications.
Efficient Pump Control
The Wilo Yonos Maxo is designed for electronically controlled circulation. Variable-speed operation can help adjust pump output to system requirements.
Typical Applications
- Heating water circulation
- HVAC and building-services systems
- Commercial heating installations
- Hydronic circulation systems
- Compatible pump replacement projects
Key Features
- Wilo Yonos Maxo circulator
- 50/0.5-8 model configuration
- 230 V single-phase supply
- Maximum head of 8 m
- Electronic pump control
- Efficient motor technology
- Suitable for compatible heating and HVAC systems
Benefits
- Supports controlled water circulation
- Helps match pump output to system demand
- Supports efficient heating and HVAC operation
- Provides electronic pump control
- Suitable for compatible commercial installations
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Wilo |
| Series | Yonos Maxo |
| Model | 50/0.5-8 |
| Power Supply | 230 V |
| Phase | Single Phase |
| Maximum Head | 8 m |
| Installation Length | 240 mm |
| Application | Heating and HVAC Circulation |
Why Choose This Wilo Circulator?
The Wilo Yonos Maxo 50/0.5-8 provides electronically controlled circulation for compatible heating and HVAC systems. Before ordering, confirm the required duty point, connection size, installation dimensions, electrical supply and system pressure requirements.
Product specification
| Manufacturer | Wilo |
|---|---|
| Warranty | 1 year warranty |
| Dimensions | Length: 255mm | Height: 276mm | WIdth: 165mm |
| Bars | 10 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Speed | Variable |
| Flow Rate | 250 Ltr/min |
| Max Head | 8m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Switch | None |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | Yes |
| Port To Port | 240mm |
| Manufacturers Part Number | 2120649 |
| specification | Details |
|---|---|
| Manufacturer | |
| Weight | |
| Dimensions | |
| Full load current | |
| Voltage | |
| Max Flow | |
| Max Head | |
| Connection size | |
| Motor size | |
| RPM | |
| Material |
